Demonstration of an OT Project - 12

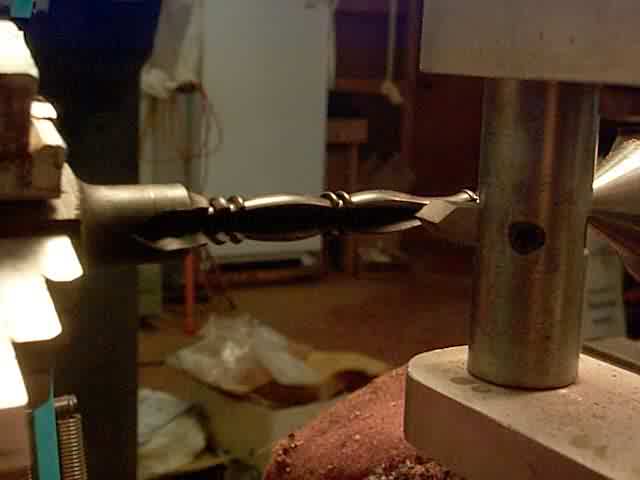

The universal cutting frame in horizontal orientation is being used with a 90 V-cutter to mill the recess in the
columns that will frame the tower section. This results in a cross-section for the columns that is 3/4 of a whole
column and allows the column to sit over the corner of the tower and appear to be imbedded into the tower.
