Spiral Gears & Gear Motor

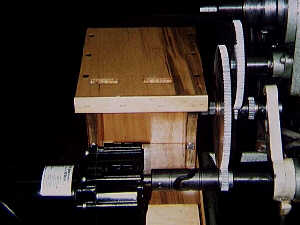

The 30 rpm gearmotor is engaged to the lead screw by means of a universal joint. The spiral gears are mounted on the outboard end of the lathe. Electronic speed controller is mounted on the cabinet below the motor.
